RSA 2021: The router of all evil

Underestimated threats of Home-office

How vulnerable home-routers can compromise corporate security

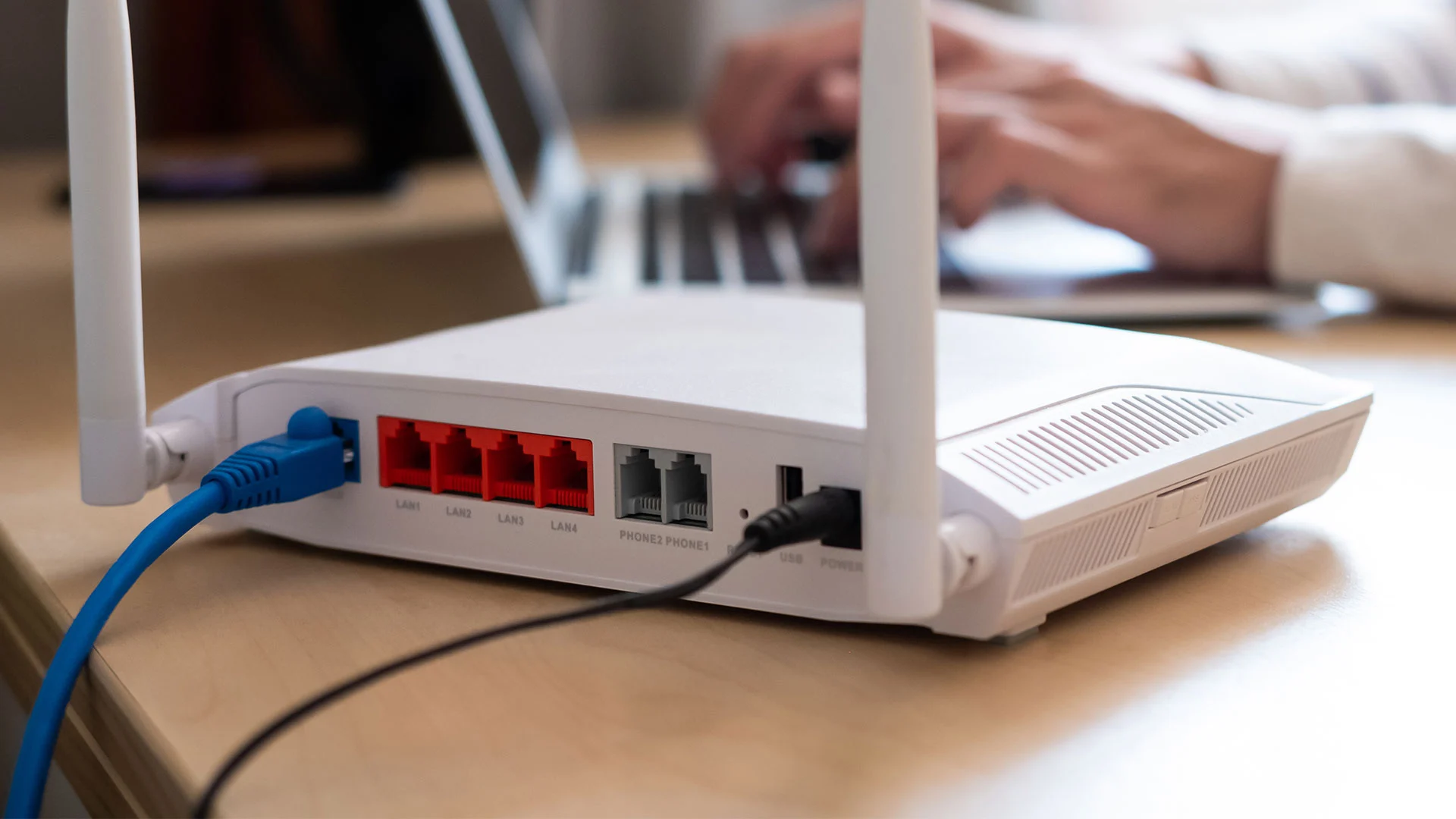

A major new element we need to consider since our workforce is connecting remotely is the security of the user’s home router. A totally new set of threats, risks and potential compromises is introduced by vulnerable or misconfigured home routers. And the traditional network security controls we’re currently using to protect remote workers are not suited well for dealing with this situation.

Clear technical strategies and perhaps unconventional approaches are required to fully defend remote workers that are connecting via untrusted routers from home.

All your users’ LAN belong to someone else…

Introduction: an underestimated threat

Remote work using Wi-Fi has become commonplace
Captive Portals are commonplace
Home routers are insecure, or insecurely configured
Home routers are a target
Our primary security response appears to be Secure Remote Access
Traditional security solutions don’t fully mitigate the threats, they could even make things worse
A holistic approach, new thinking, and a precise application of technology are needed to reduce the risk

Why DHCP and Captive Portals exist

Dynamic Host Configuration Protocol

The DHCP protocol is used by the home router to define important configuration settings for the endpoint. As such, a compromised home router can exert extraordinary influence over the configuration and behaviour of a remote workers computer, and needs to be considered in your threat model.

Assign network config to devices
Rich set of Options
(IPv4 & IPv6, Routes, DNS, Preboot eXecution Environment)

Captive Portals

Captive Portals exert even more influence by blocking outbound internet connections (required to establish a VPN) and influencing the behaviour of the default browser.

“Free” internet with strings attached
Controlled by the provider via AP
Influences the behavior of the browser

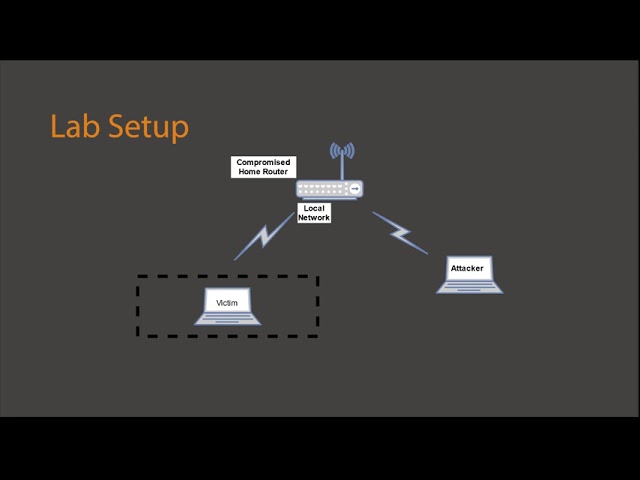

Attack scenario 1: Routing control through DHCP

We demonstrate:
Since we control DHCP, we also control routing. Using DHCP and routes we can bypass a VPN and steal RDP credentials.

Attack scenario 2: OS-boot control through DHCP

We demonstrate:

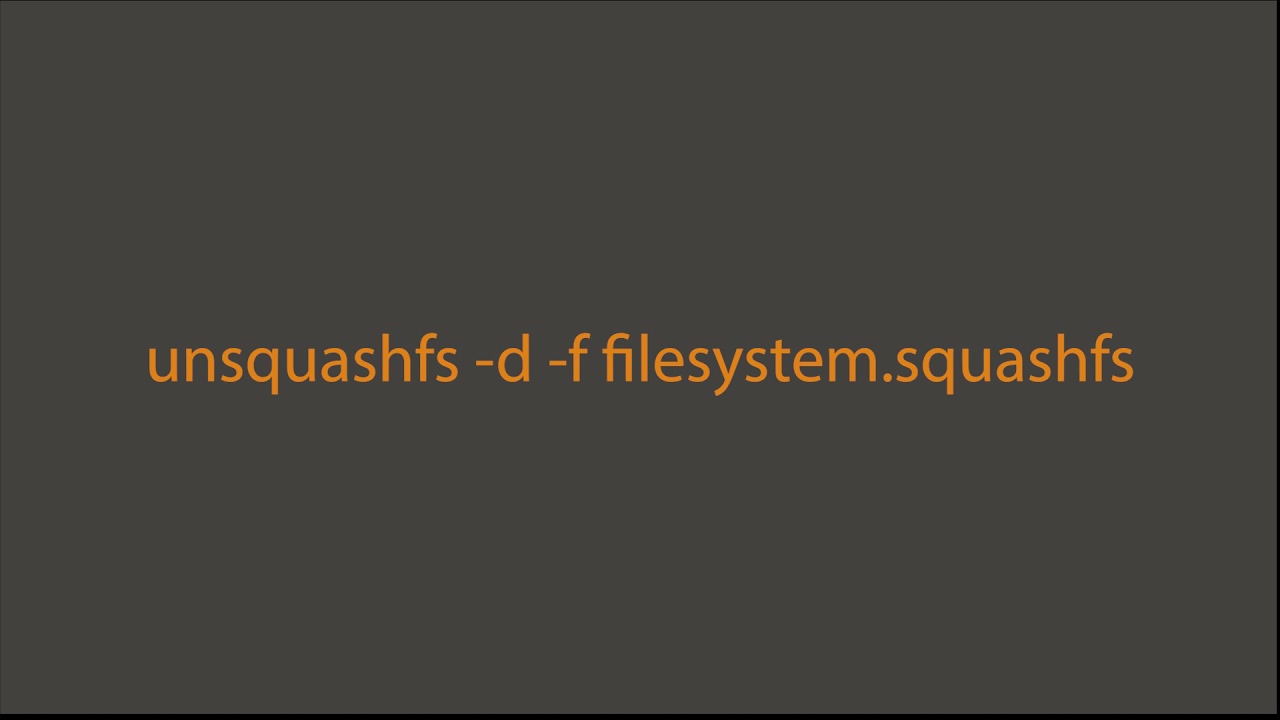

Since we control DHCP, we also control the OS booted. Using DHCP and PXE we can boot the endpoint into our very own Operating System.

Attack scenario 3: Browser control

We demonstrate:

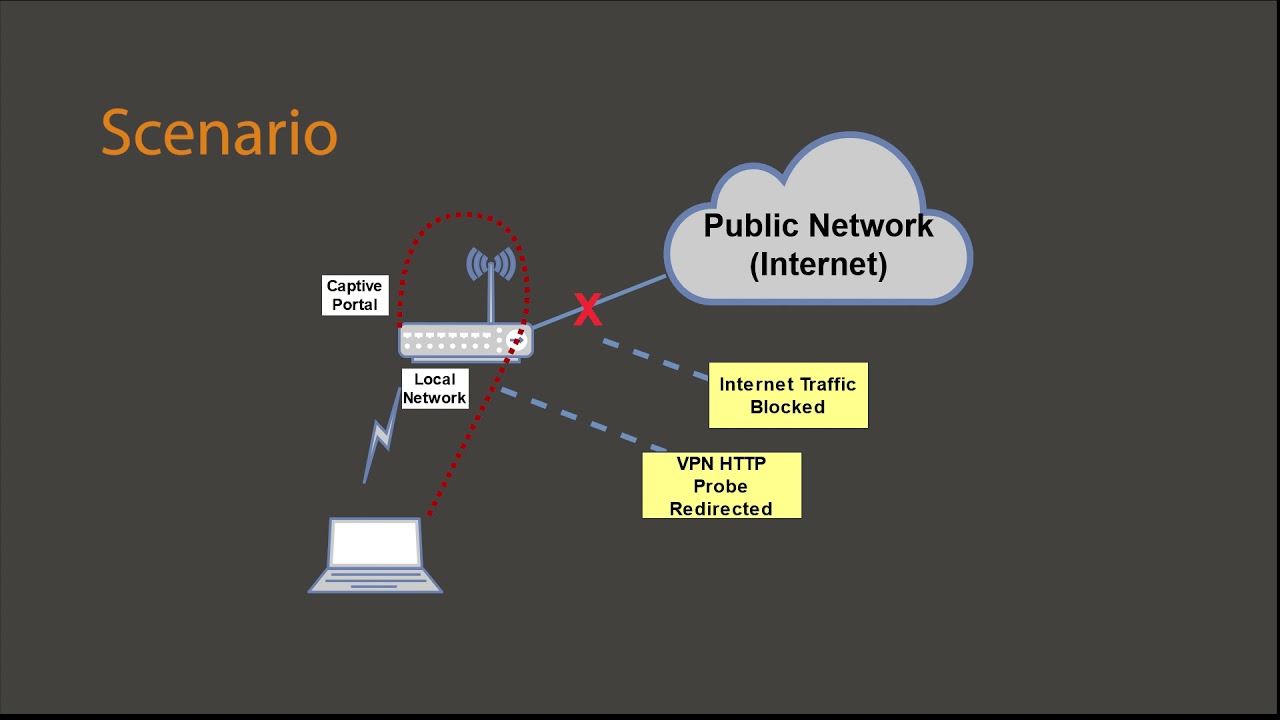

Since we control the Internet, we also control the browser. We are tricking the VPN into believing it’s faced with a Captive Portal and afterwards proceed to tricking the user into triggering malware.

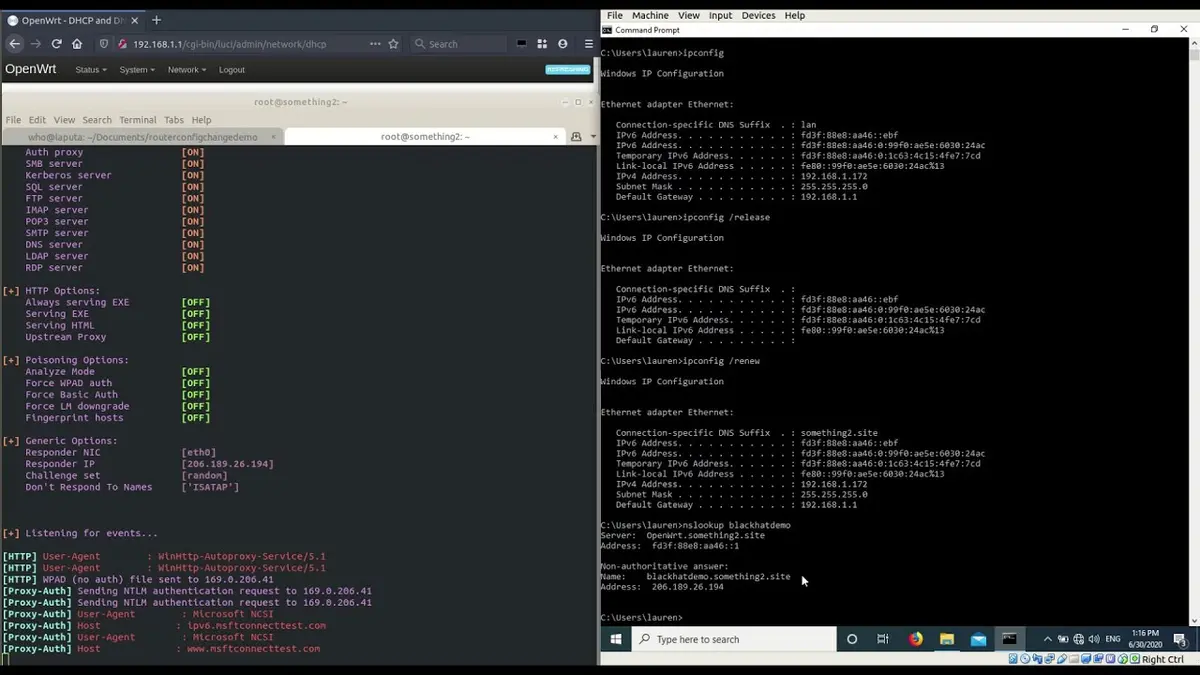

Attack scenario 4: Responder attack

We demonstrate:

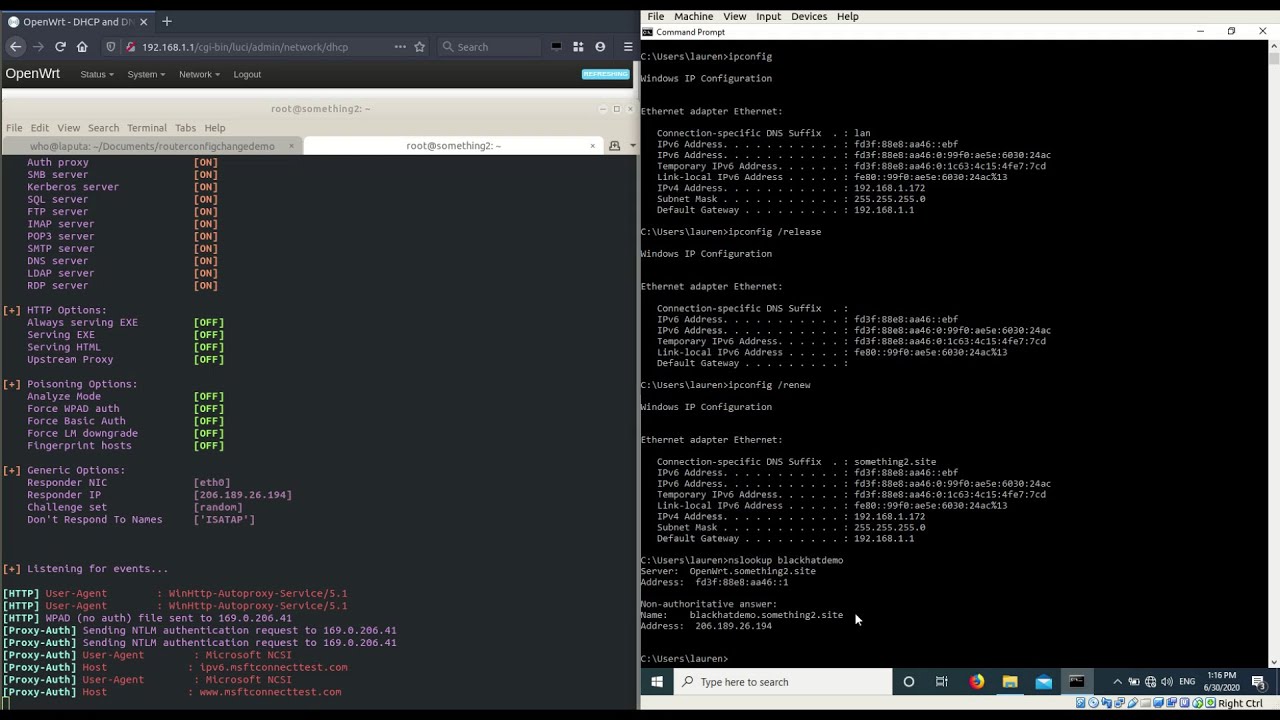

We run a Responder attack, getting fully connected even in lock-down mode. Because we can inject a DNS search suffix we can PiTM any traffic to an unresolved host name.

Putting secure remote access to the test

We have tested several commonly used solutions in different configurations against various kinds of attacks. The results are displayed in the following table:

Legend

Tested attack scenarios:

Sniffing sensitive data
DNS ‘Person in the Middle’ (PiTM) or spoofing
Harvesting credentials using spoofed website
Capturing Windows hashes via Responder
Using the Browser as a tunnelling proxy
Using IPv6 to interact with host

Results

These findings are a cause for concern.

Our initial concerns about the failure of VPNs to protect machines behind malicious AP all hold true.
Even once fully established, a carelessly configured VPN barely does better at mitigating the identified threats.
‘Lock down’ features that are intended to mitigate the captive portal problems do indeed address some issues, but are not universally effective in mitigating the full set of threats we considered.
The findings are not consistent across all vendors, so vendor selection does matter.

Comparing 'Zero Trust' and 'Secure Remote Access'

Technically similar

Identity Access Management
Granular control to resources
Monitor and inspect network

Different in principle

Zero Trust is not an extension of the perimeter
Every transaction is authenticated and authorized
Assumes breach

Zero Trust is a mindset, not a technology!

The Zero Trust security model eliminates implicit trust in any one element, node, or service and instead requires continuous verification of the operational picture via real-time information fed from multiple sources to determine access and other system responses. The Zero Trust security model assumes that a breach is inevitable or has likely already occurred…

What to do now

What actions can be taken in the short, medium and long term to address the problem?

Next week you should start to:

Update your VPN to the latest version
Ensure ‘route precedence’ is enforced and working
Review your ‘split tunnelling’ configuration options with contemporary threats in mind – Forced Tunnel, with exceptions should be your model-approach
Control all DNS settings
Fully qualify internal host names
Review VPN session time-out settings
Use a firewall or EDP to control sensitive outbound connections (e.g. SMB).

In the next three months:

Review our prior research and detailed technical guidance on Secure Remote Access
Evaluate and control dual stack use (IPv4 & IPv6)
Internalize the true risks faced by your home users
Carefully consider what security threats your security technology is supposed to address
Engage with your vendors
Examine your vendor choices carefully. Not all products address these risks equally.

Within six months:

Consider some fresh paradigms, e.g.

Sponsoring and controlling home network connectivity & home IT
Deploying SD-WAN or a ‘Remote Access Point’ for all users, or where appropriate
Mobile data and / or private APN for remote workers
Begin your (proper) Zero Trust journey

Conclusion

There’s a lot to be done to fully protect our new-born remote workforce.

An intelligence-led approach will help guide teams tasked with protecting business systems to prioritize actions. The threat landscape is constantly changing and that means that businesses must keep abreast of significant changes to ensure that their risk exposure remains within an acceptable threshold. To do so they must have the latest information about tactics and techniques used by attackers and what the most effective means are to detect attacks and to limit risks associated with a successful attack.

The good news is that no magic is required. In this paper, we recommend a simple plan that is inspired by the CIS Top 20 controls and the NIST cybersecurity framework.

We’re in a war against threats, not a battle, and every additional control you implement will raise the cost for an attacker and improve your resilience.

Do the basics right by running a proactive vulnerability management program, reduce the exposure of accounts with administrative privileges, and monitor remote systems.

Supplement these with endpoint detection and protection solutions,
review and harden configuration of software such as VPN clients to ensure that remote staff receive all the protection offered by mature enterprise products,
use industry-recognized identity providers backed by multi-factor authentication.

Finally, ensure that your people are properly trained and keep them well informed regarding the tactics and techniques of current active threats. Prepare for the worst by having an incident response plan that can help remote staff and make sure you regularly practice this to ensure staff is familiar with the drill.

Find detailed advice in the paper
