Reverse engineering of the Anubis malware

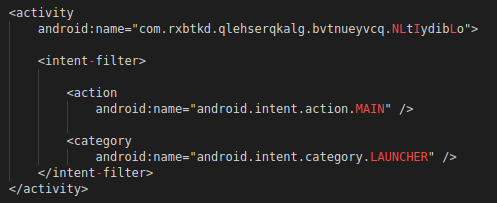

Figure 5: Manifest extract

We will realize later that this class does not exist yet. We therefore supposed that the application could create a second dex file (Dalvik Virtual Machine, compiled code of an APK) containing the missing classes and functions.

A dex file references any classes or methods used within an app, which means that we could not do a static analysis of an APK without it.

We searched for where and when the 2nd .dex file was created. The emulator provides the logs of all launched applications. The malicious application actually used this logging system and was not disabled by the creators of the malware.

Figure 6: Searching for the creation of the dex file in the emulator logs

Note that, indeed, a file is created in the directory “app_files”.

We tried to recover it via ADB, but the directory is missing from the phone. The application probably deleted this directory and its files.

To prevent the deletion, we searched for called deletion function in an execution trace. Then hook it, we will be able to recover the missing dex file.

To find the function, we used the strace command (Linux tool to track system calls) in an ADB shell on the zygote process (father of all other applications on Android). This created a complete execution trace of the running emulator. In a second terminal, we installed and launched the application.

In the logs the unlink function seems to be the one which delete our file.

Now, the hook prevents the malware from deleting this file. Several methods are possible, we used the Frida tool (https://github.com/frida).

Figure 7: Frida script that replaces the unlik call with a simple log

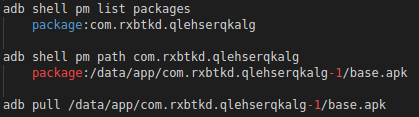

We could then download our second dex file via ADB directly on the smartphone.

Nota bene: If you use an emulator who runs an Android version older than 25, you will get an .odex and a .vdex file instead of a .dex file.

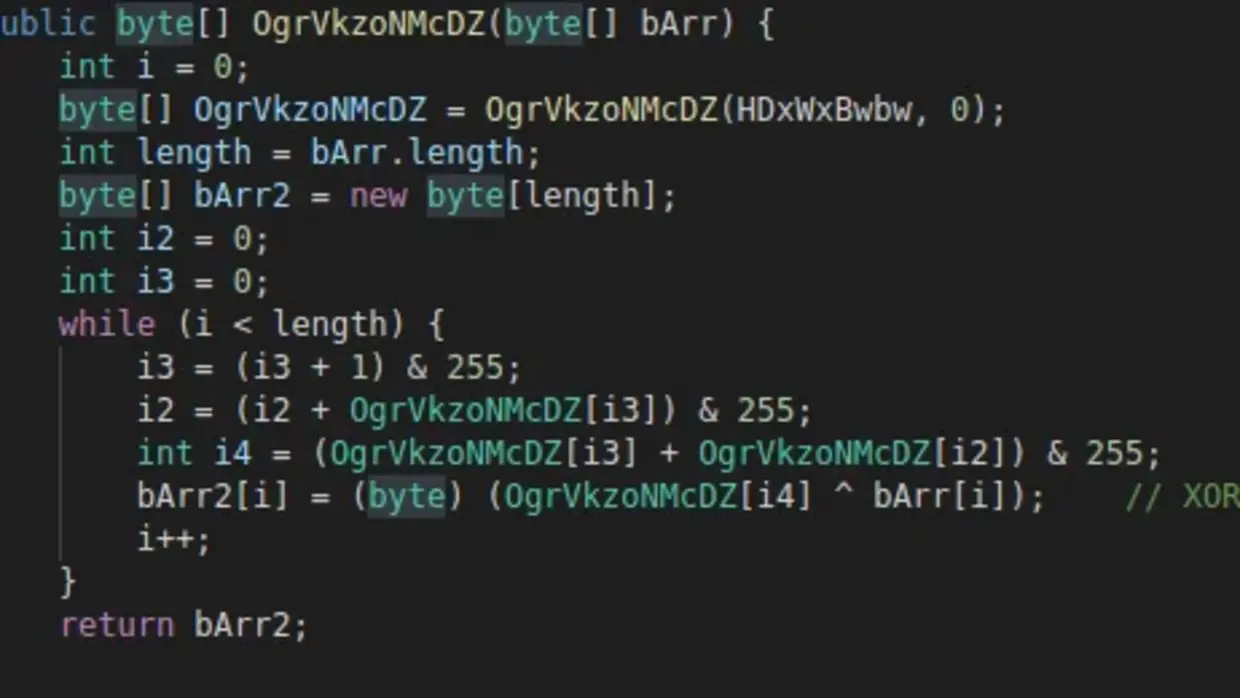

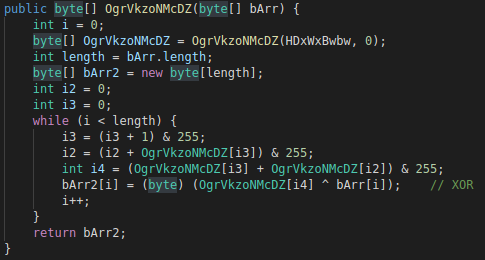

Figure 8: Extract of the decompiled source code that contains the xor function

We can see the function is XORING two variables, moreover this looks like a RC4 crypto function (the pseudo-random generation algorithm to be precise).

So we are looking for the Key-scheduling algorithm in order to find the key (in absence of communication with the C&C, the key had to be hard-coded within the application).

In the same class, we found this function:

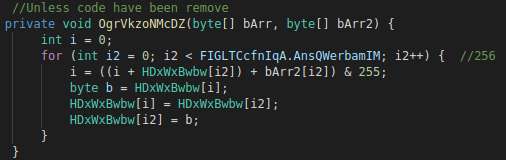

Figure 9: Source code of the generation of the permutation matrix

Which was called here:

We just had to decode using the rc4.decrypt function and we will have our second dex file.

Alternative

The 7 samples of Anubis (and 3 sample of another malware) have all the same packer architecture. We made a python script that gives the corresponding dex file of any input APK.

The extracting script unzips the APK file and decompiles it (transforms .class in .java thanks to jadx), then searched for the key.

The key have the following structure:

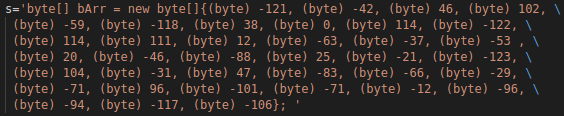

Figure 11: Example of initializing the key in the source code

The following regex will match all possible keys:

Figure 12: Python regex to find the key

Using the found key, the script tries to decode any data file found in the APK resource. The right decoded dex file will have a Zip header (‘PK’).

At this stage, the code is also very obfuscated, but there is no dead code ; it is a bit more readable.

This is the last stage of the malware. Before finding what it does, we will have to discover how it communicates.

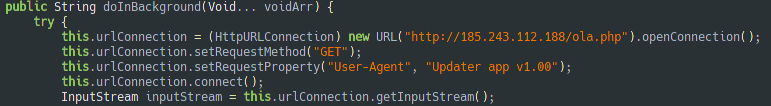

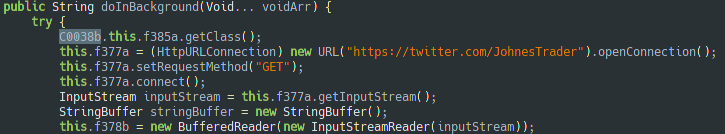

First, we thought that this was how the malware gets its order. But after some digging into the code, this is in fact how the malware gets the C&C address.

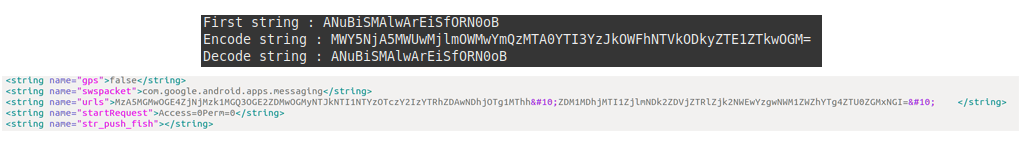

The C&C address is encoded in Base64, so we have to find how to read it. Here it is the decode function which uses a custom function and the Base64.decode function.

The server name is stored in the shared preferences folder (that is used to keep a variable in memory even if the user closes the application). The variables are stored encoded, we will have to search for the decoding fonction.

We scripted both these functions in python:

In the first exchange with the C&C, the malware will send the list of installed packages, so that the C&C will know if they are any interesting application installed on the device (e.g. banking applications) or to prepare a more complex social engineering plan.

Persistence

The malware can start at boot because of the authorizations we gave it (android.permission RECEIVE_BOOT_COMPLETED) without any user’s action.

Moreover, we cannot delete the application. Upon trying it displays a message saying “System apps cannot be deleted”.

We cannot re enable Google Play Protect either…

…or reset the system.

All of this is possible because the malware can track the user actions. If it detects that we try one of the three actions above, it will launch a new activity that displays an Alert-dialog in the Homescreen before you can change anything.

In SDK version > 23, Android would kill applications that run for too long in the background for battery optimization. The malware bypasses this by making an exception for the malicious application.

Injection in other process (Overlay)

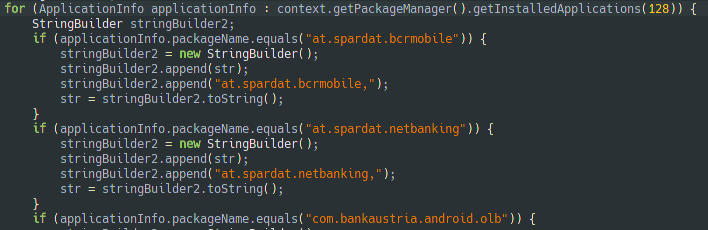

The malware searches for some specific application/package (they are more than 100 app names, mostly banking apps or crypto wallets).

If one of them exists, the malware will wait for it to start. The malware then displays a corresponding page that will trick the user into giving his credentials.

The corresponding page is sent by the C&C server and the malware can get all applications that are currently running on the smartphone. This, thanks to the PACKAGE_USAGE_STATS permissions we gave it.

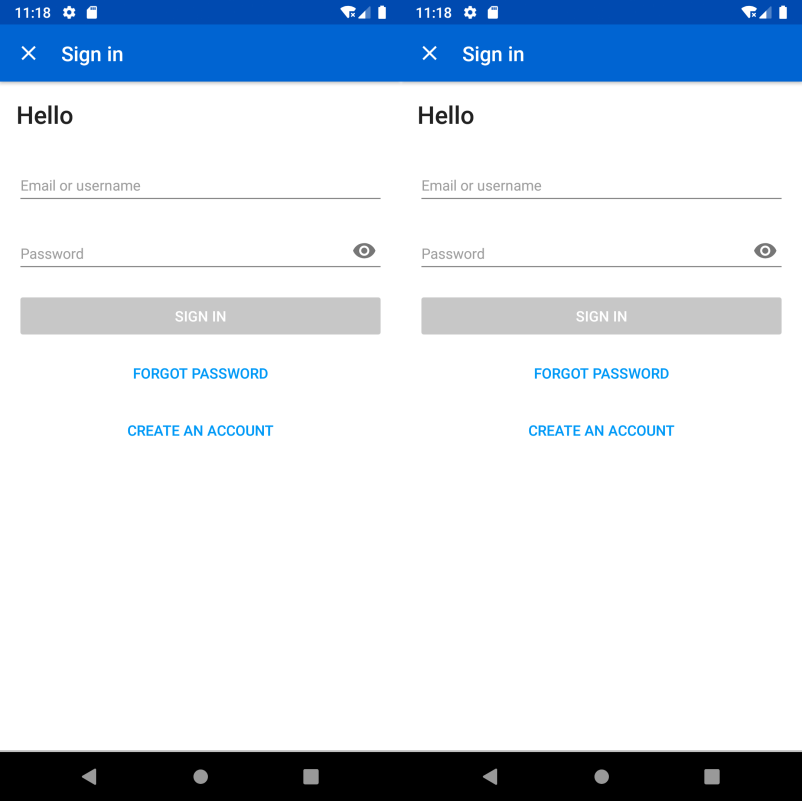

On the left, the real EBay application sign in menu. On the right, the fake one.

Keylogger

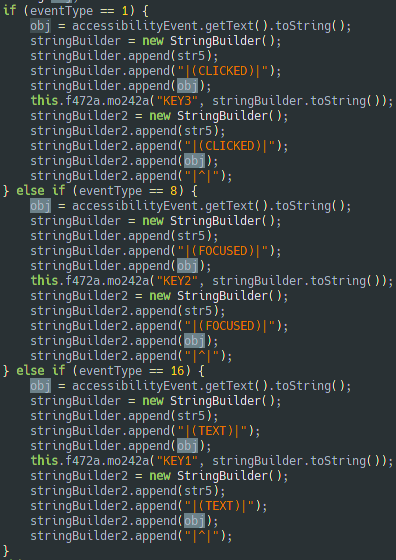

The keylogger tracks three different events: “Clicked”, “Focused” and “Text”. This works in every app.

• TYPE_VIEW_CLICKED (eventType=1)
  Represents the event of clicking on a View like Button, CompoundButton, etc.

• 8: TYPE_VIEW_FOCUSED (eventType=8)
  Represents the event of setting input focus of a View.

• 16: TYPE_VIEW_TEXT_CHANGED (eventType=16)

Represents the event of changing the text of an EditText.

The keylogger is disabled by default, but can be enabled by a command sent from the C&C server.

Crypt or Decrypt file

The malware can also find a specific file (or just use an entire directory), encrypt it with the RC4 algorithm, and send it to the C&C.

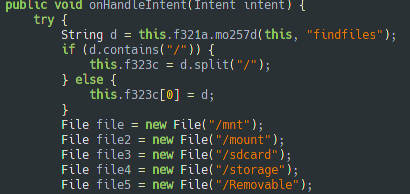

As you can see, the malware browses all the different memory storage.

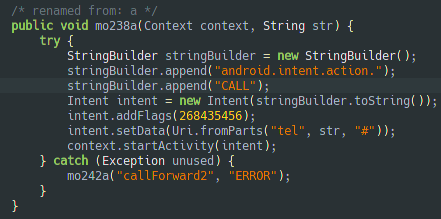

Intercept SMS or Phone call

Thanks to the keylogger, the malware can already read sms, but the malware also requests to be the default SMS app or make SMS/call forwarding.

Get phone book

The malware can get all the contacts from the Android phone book with the CONTENT_URI field.

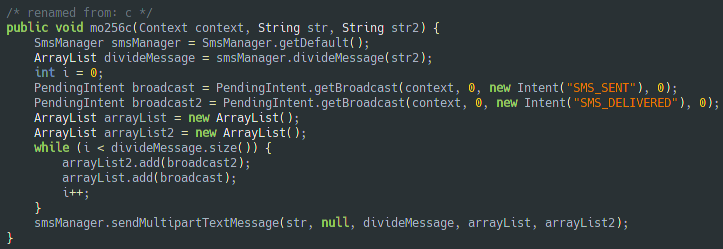

Can send sms to all contact

After getting the phone book, the malware can send sms messages to all the contacts or to a specific one.

The message body is received from the C&C.

In order to avoid strange or security number, the malware sends a text message only to numbers that respect this condition:

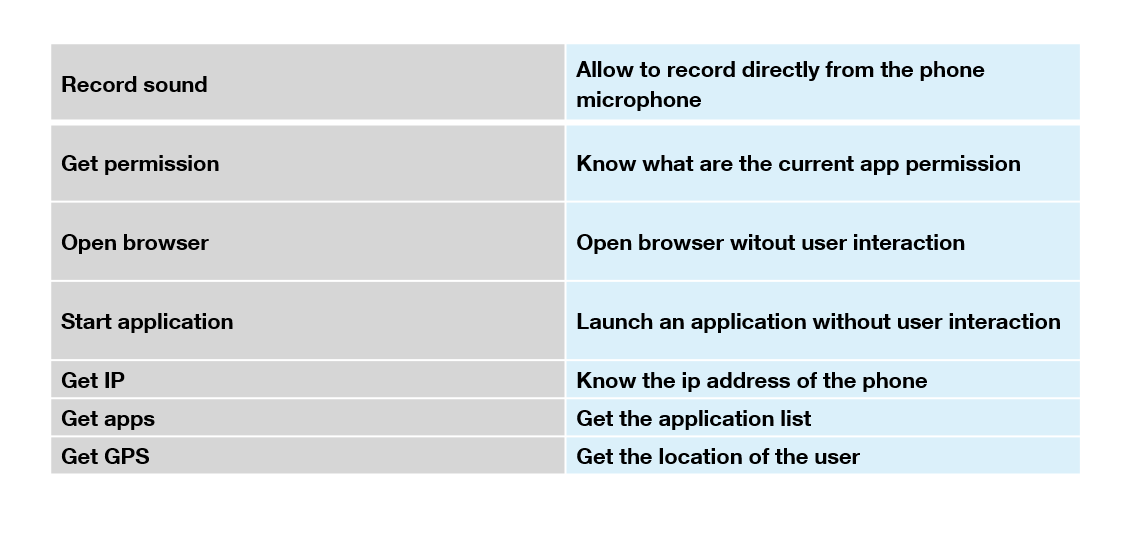

Other of commands (not an exhaustive list)
